70′ Wide High Profile Truss Building

70; Salt Shack Hoop Building

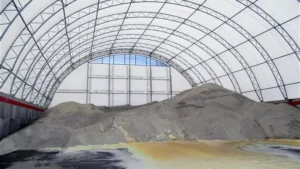

The Rushmore 70′ wide high profile barn structure is a welded truss clear span building. This building is purposely built extra tall which is great for storing grain or tall equipment. It’s even great for livestock because of even better air circulation. Like all of our truss buildings, it can be configured to meet or exceed IBC Engineering code requirements for a 90 mile-per-hour wind load and a 50 pound per square foot snow load.

Like most of our truss buildings, this building has variable rafter spacing that can be configured to meet your local conditions. For livestock purposes, you can also add outside feed awnings on one or both sides, curtains of your choice and venting.

We would love to give you prices for this building on our website but there are just too many options available for us to list. Even our color choices are complicated. Not only can you choose your hoop building main color but you can also have accent stripes in many different styles free of charge.

Interested in this building?

Call Us!



The term “truss” means that the rafters are a double round heavy gauge pipe with a welded steel webbing between them. This 40′ wide building has rafters that can be spaced a different intervals depending upon the application. The minimum length we are offering is 40′ but the maximum length is almost any length you desire. This model is also a “pony wall” building. It is designed to be erected on posts or a concrete wall. A 4′ high pony wall is the industry standard. If you put your building on a 4′ wall, the overall peak height would then be about 18’3″. Wall height is flexible but please let us know your plans so that we can advise you with the correct mounting brackets. Your pony wall must be at least 24″ tall to properly tension the cover. Of course, this couldn’t be a fabric tension building without the fabric. Our 40′ is covered with 12.5 oz. 24 mil polyethylene tarp that has an inner layer of woven tapes. The covers are rip stop and light transmitting so you can see without using electric lights. These utility hoop buildings are easy to erect. They are quickly bolted together. Complete instructions and hardware are included in your hoop building kit. There are so many options available beginning with colors. Not only can you choose your hoop building main color but you can also have accent stripes in many different styles free of charge. The possibilities are almost endless!
Some of the Available Options include:
  • Available almost any length you want
  • 5′ Feed awning on one or both sides
  • Manual and electric side curtains
  • Roll-up fabric doors and door headers up to 16′
  • Ridge and window vents, and
  • End walls with and without supports.
  • Colors, stripes, colors and more colors!
Width38′ 5 ¼” Interior width from wall to wall
Peak Height14′ 3 316” plus height of wall
Tensioning SystemPipe with ratchets at each rafter and end
Cover MaterialTear resistant high-density polyethylene
Cover Weight12.5 oz.
Rafter MaterialUSA-made Gatorshield® structural steel
Pipe Gauge12
Truss Detail2 – 2 38” top and bottom chords
Rafter Spacing8′, 10′ or 14′
Cover Material Warranty15 year
IncludedAll hardware and lag bolts for post attachment
Not IncludedPosts or walls, rub rail, baseboards or concrete anchors, assembly
Downloadable SpecsClick Here to Download PDF
