100' Wide Truss Hoop Building

100' Wide Fabric Tension Building
Click to enlarge

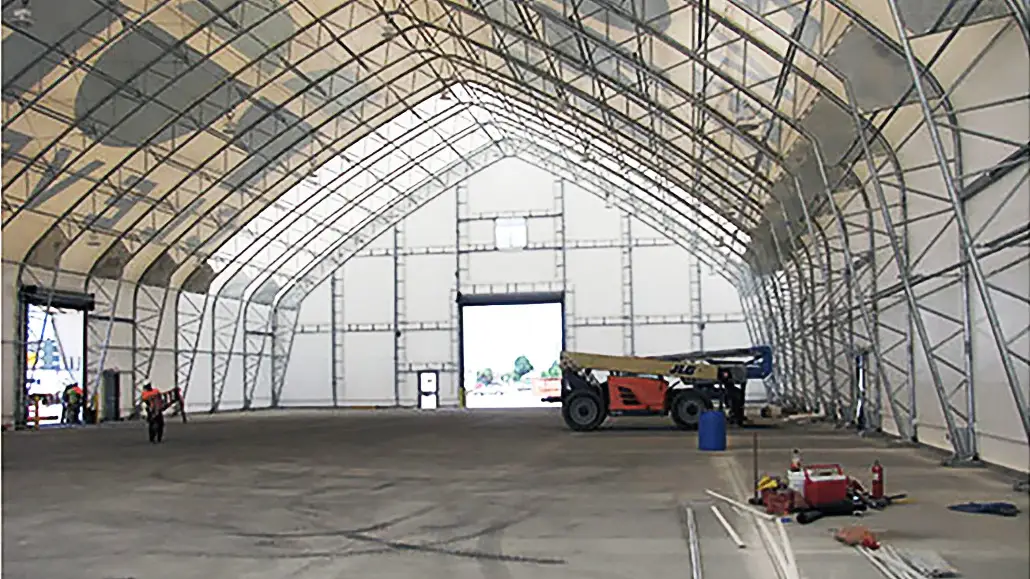

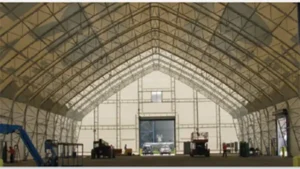

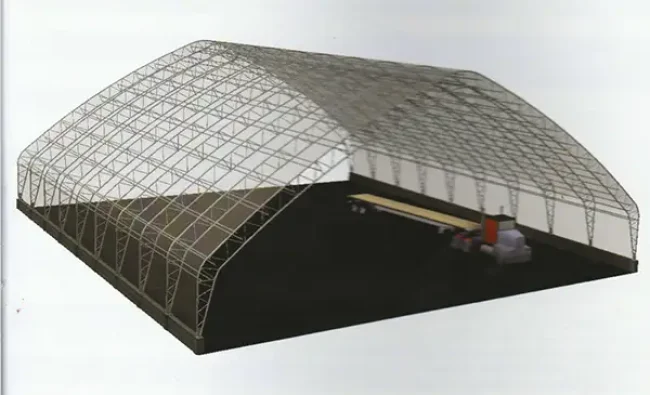

The 100′ wide hoopbarn is a welded truss engineered building. It is one of our fabric tension buildings with a different shape than our smaller buildings. It is a clear-span building and can be constructed to meet or exceed IBC Engineering code requirements for a 90 mile-per-hour wind load and a 50 pound per square foot snow load. It is available with truss spacing at 10, 12 or 14 feet.

This is a very versatile building with side walls for additional height which allows you to use every square foot of space. There are many ventilation and end options for the 100′ building, just as there are with all of our hoop structures.

This hoop barn is a 100 foot wide fabric tension structure. No matter how short you make it in length, it is huge! This hoop building is engineered to be permanent yet you could easily and economically relocate it somewhere else.

Fabric tension barns build quickly. You’ll be able to use your investment right away and you won’t have high maintenance costs either. Hoop barns are almost zero maintenance.

We ask that you call us about this building because there are many options and alternatives to consider. We have years of experience to guide you to the building you need.

Specifications

Some of the Available Options include:

  • Available almost any length you want
  • High wind area tension kit
  • Ratchet and mounting plate upgrades
  • 5′ Feed awning on one or both sides
  • Manual and electric side curtains
  • Roll-up fabric doors and door headers up to 16′
  • Ridge and window vents, and
  • End walls with and without supports.
  • Colors, stripes, colors and more colors

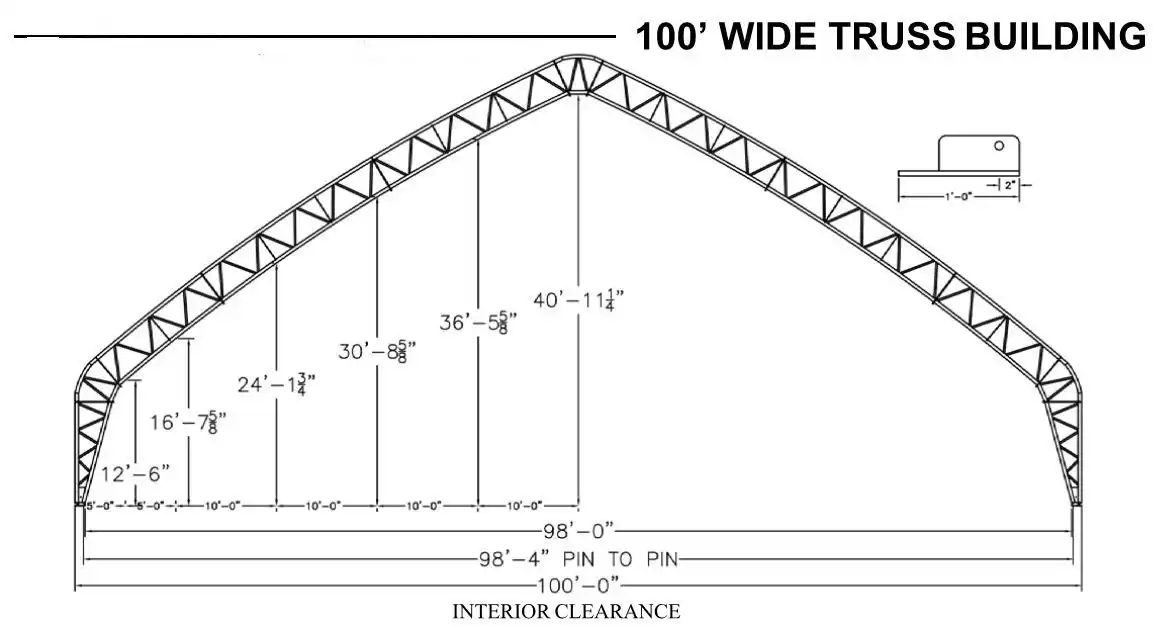

Width98′ Interior width from wall to wall
Peak Height40’11 ¼” plus height of wall
Tensioning SystemPipe with 2″ ratchets at each rafter and end
Cover MaterialTear resistant high-density polyethylene
Cover Weight12.5 oz.
Rafter MaterialWelded Steel Trusses
Pipe Diameter4″ 12 ga top chord and 4″ 10 ga bottom chords
Rafter Spacing10′ standard, 8′ and 14′ available
Cover Material Warranty15 year
IncludedAll hardware and lag bolts for post attachment
Not IncludedPosts or walls, rub rail, baseboards or concrete anchors, assembly
Downloadable SpecsClick Here to Download PDF

Interested in this building?

Call Us!

888-497-1088

Made in the USA

Get a Quote on This Building

*  Starred fields are required. Please use the message box to let us know about special needs like roof vents, feed awnings, doors, etc.

We love our Rushmore engineered fabric tension buildings and we’d be happy to answer any questions you may have about them. Call us 1-888-497-1088.
