120' Wide Hoop Building
The 120′ wide truss hoop barn is ideal for livestock confinement or warehousing. The 120′ clearspan building is a welded truss engineered building. It is a fabric tension buildings with a different shape than our smaller buildings. It is a clear-span building and can be constructed to meet or exceed IBC Engineering code requirements for a 90 mile-per-hour wind load and a 50 pound per square foot snow load. It is available with truss spacing at 10, 12 or 14 feet.
This is a very versatile building with side walls for additional height which allows you to use every square foot of space. It is also a clear span building meaning there are no center supports to interfere with any use you might want to enjoy in this fabric barn.
We think this building would be great for livestock. Pens could be configured any way you need them and there is plenty of room for feed alleys. Imagine a riding arena where you could also house your horses. There are many ventilation and end options for the 120′ building, just as there are with all of our hoop structures.
There is also great potential for this hoop structure as an event or indoor sports center. How many soccer fields could you put in one of these? The size just boggles your mind!
We don’t have a picture of this fabric barn because we haven’t built one this size yet but we’re looking forward to it. If you’re in our area and you need immense, unfettered space for any purpose, give us a call. We’d love to work with you.
We ask that you call us about this building because there are many options and alternatives to consider. We have years of experience to guide you to the building you need.
Specifications
Options
Some of the Available Options include:
- Available almost any length you want
- 5′ Feed awning on one or both sides
- Manual and electric side curtains
- Roll-up fabric doors and door headers up to 16′
- Ridge and window vents, and
- End walls with and without supports.
- Colors, stripes, colors and more colors!

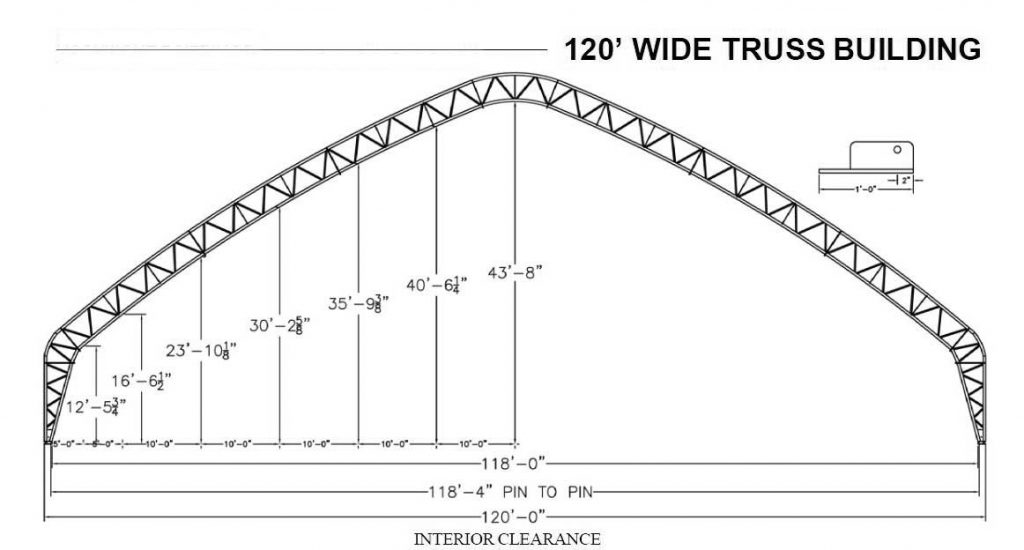

Building Specifications
Width | 118′ Interior width from wall to wall |
Peak Height | 43’8″ plus height of wall |
Tensioning System | Pipe with 2″ ratchets at each rafter and end |
Cover Material | Tear resistant high-density polyethylene |
Cover Weight | 12.5 oz. |
Rafter Material | Welded Steel Trusses |
Pipe Diameter | 4″ 8 ga top and bottom chords |
Rafter Spacing | 10′ standard, 8′, 12′, 14′ and custom available |
Cover Material Warranty | 15 year |
Included | All hardware and lag bolts for post attachment |
Not Included | Posts or walls, rub rail, baseboards or concrete anchors, assembly |
Downloadable Specs | Click Here to Download PDF |
Interested in this building?
Get a Quote on This Building
* Starred fields are required. Please use the message box to let us know about special needs like roof vents, feed awnings, doors, etc.
We love our Rushmore engineered fabric tension buildings and we’d be happy to answer any questions you may have about them. Call us 1-888-497-1088.
