70' Wide Low Profile Hoop Barn

70' Wide Hoop Barn
Click to Enlarge

Our Rushmore 70′ wide fabric tension building is a welded truss engineered building. It can be constructed to meet or exceed IBC Engineering code requirements for a 90 mile-per-hour wind load and a 50 pound per square foot snow load.

We want to emphasis how heavy-duty this particular building is built as that is important for livestock. You won’t find any light gauge steel that a billy goat could bend in any Rushmore building!

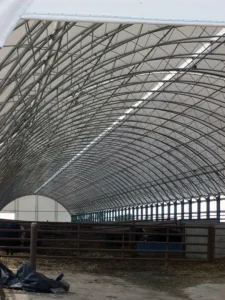

This is a clear span building, meaning there are no interior posts or walls to get in your way no matter what you want to use the building for. With it’s many options, you can design your building for exactly the livestock or other use you have in mind.

We prefer that you call us about this building because there are many options and alternatives to consider. We have years of experience to guide you to the building you need.

Specifications

Some of the Available Options include:

  • Available almost any length you want
  • High wind area tension kit
  • Ratchet and mounting plate upgrades
  • Roll-up doors
  • Ridge and window vents, and
  • End walls with and without supports.

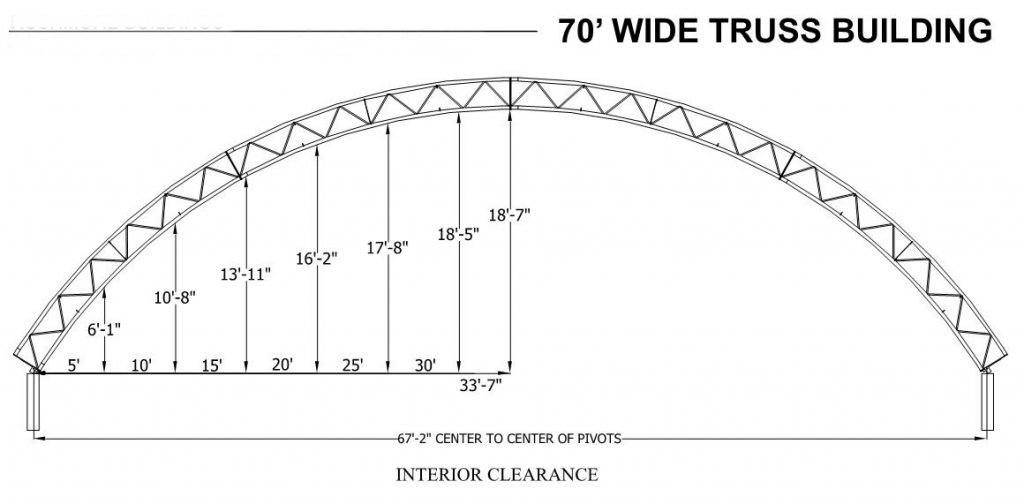

Width67′ 2″ Interior width from wall to wall
Peak Height18′ 7″ plus height of wall
Tensioning SystemPipe with 2″ ratchets at each rafter and end
Cover MaterialTear resistant high-density polyethylene
Cover Weight12.5 oz.
Rafter MaterialWelded Steel Trusses
Pipe Gauge12 ga.
Pipe Diameter3″ top and bottom chords
Rafter Spacing10′ standard, 8′ and 14′ available
Cover Material Warranty15 year
IncludedAll hardware and lag bolts for post attachment
Not IncludedPosts or walls, rub rail, baseboards or concrete anchors, assembly
Downloadable SpecsClick Here

Interested in this building?

Call Us!

888-497-1088

Made in the USA

Get a Quote on This Building

*  Starred fields are required. Please use the message box to let us know about special needs like roof vents, feed awnings, doors, etc.

We love our Rushmore engineered fabric tension buildings and we’d be happy to answer any questions you may have about them. Call us 1-888-497-1088.
