60' Wide High Profile Truss Building

60" HP Hoop Barn
Click to Enlarge

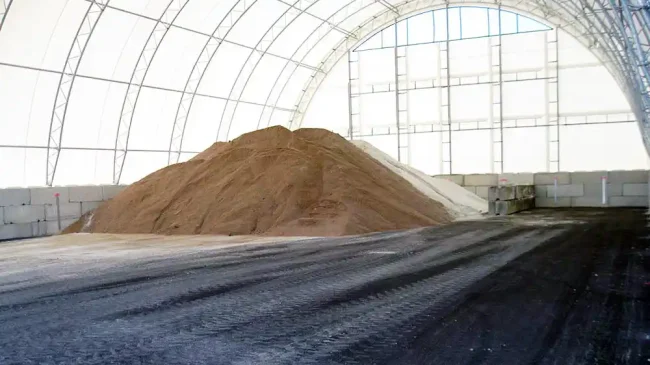

The Rushmore 60′ wide high profile hoop shelter is a welded truss building that is perfect for a livestock shelter. This building is purposely built extra tall which is great for storing grain or tall equipment. It’s even great for livestock because of even better air circulation. Like all of our truss buildings, it can be configured to meet or exceed IBC Engineering code requirements for a 90 mile-per-hour wind load and a 50 pound per square foot snow load.

Like most of our truss buildings, this building has variable rafter spacing that can be configured to meet your local conditions. For livestock purposes, you can also add outside feed awnings on one or both sides, curtains of your choice and venting.

We would love to give you prices for this building on our website but there are just too many options available for us to list. Even our color choices are complicated. Not only can you choose your hoop building main color but you can also have accent stripes in many different styles free of charge.

Specifications

Some of the Available Options include:

  • Available almost any length you want
  • High wind area tension kit
  • Ratchet and mounting plate upgrades
  • Roll-up doors
  • Ridge and window vents, and
  • End walls with and without supports.

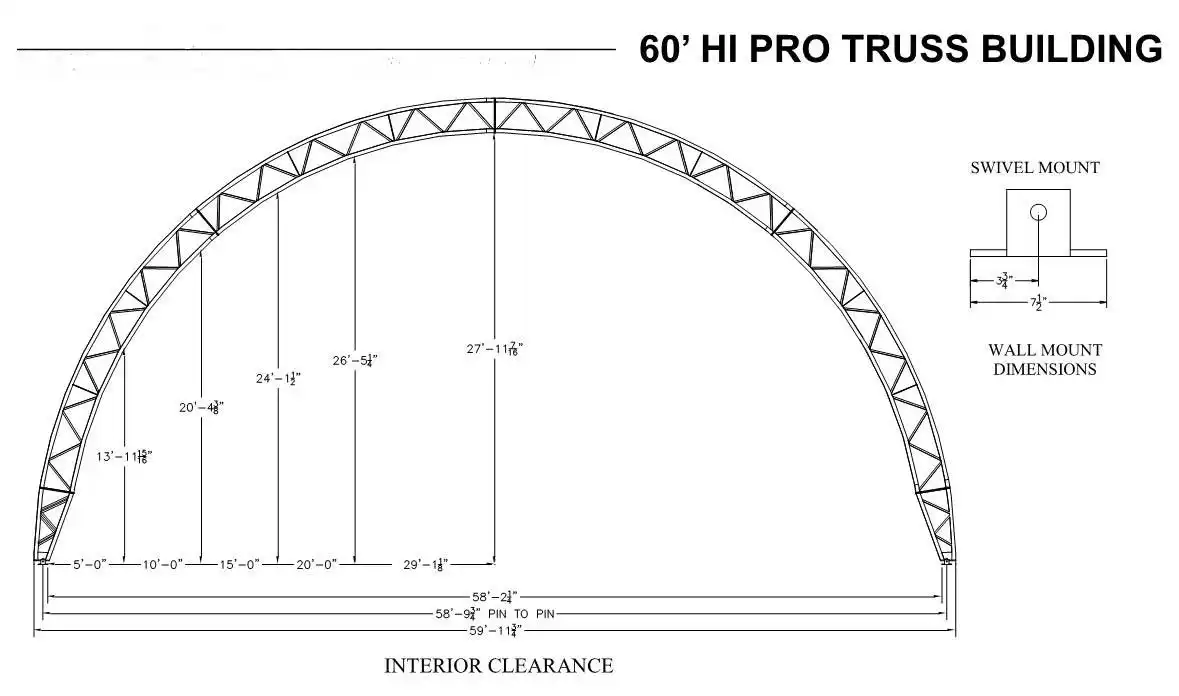

Width58′ 2 ¼” Interior width from wall to wall
Peak Height27′ 11 716“” plus height of wall
Tensioning SystemPipe with 2″ ratchets at each rafter and end
Cover MaterialTear resistant high-density polyethylene
Cover Weight12.5 oz.
Rafter MaterialWelded Steel Trusses
Pipe Gauge12 ga.
Pipe Diameter3″ top and bottom chords
Rafter Spacing10′ standard, 8′ and 14′ available
Cover Material Warranty15 year
IncludedAll hardware and lag bolts for post attachment
Not IncludedPosts or walls, rub rail, baseboards or concrete anchors, assembly
Downloadable SpecsClick Here to Download PDF

Interested in this building?

Call Us!

888-497-1088

Made in the USA

Get a Quote on This Building

*  Starred fields are required. Please use the message box to let us know about special needs like roof vents, feed awnings, doors, etc.

We love our Rushmore engineered fabric tension buildings and we’d be happy to answer any questions you may have about them. Call us 1-888-497-1088.
