50' Wide High Profile Truss Building

50' Hoop Building
Click to Enlarge

When we were thinking of tarp buildings for sale for dairy operations, this is the building we were thinking of. It’s the perfect width for cattle management. Of course, it’s still a great building for other farm and warehouse uses. Like all of our truss buildings, it can be spaced to meet or exceed the IBC Engineering code requirements for a 90 mile-per-hour wind load and a 40 pound per square foot snow load.

This is a great building for outside cattle feeding for beef cattle or dairy and we have awnings and curtains available also.

This is a clear span building, meaning there are no interior posts or walls to get in your way no matter what you want to use the building for. With it’s many options, you can design your building for exactly the use you have in mind whether it’s agricultural storage or an event center.

We would love to give you prices for this building on our website but there are just too many options available for us to list. Even our color choices are complicated. Not only can you choose your hoop building main color but you can also have accent stripes in many different styles free of charge.

Specifications

Some of the Available Options include:

  • Available almost any length you want
  • High wind area tension kit
  • Ratchet and mounting plate upgrades
  • Roll-up doors
  • Ridge and window vents, and
  • End walls with and without supports.

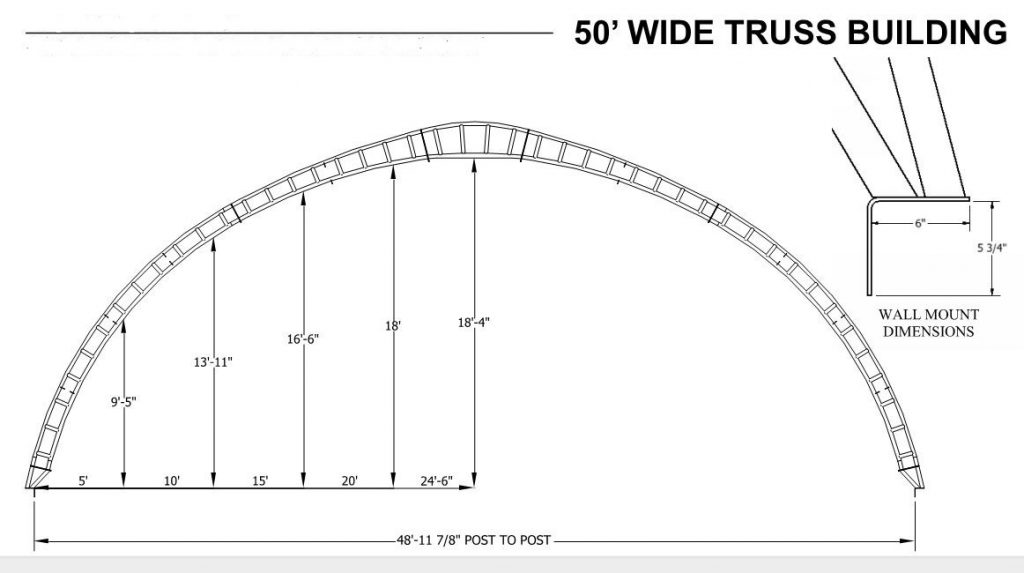

Width48′ 11 78” Interior width from wall to wall
Peak Height18′ 4″ plus height of wall
Tensioning SystemPipe with 2″ ratchets at each rafter and end
Cover MaterialTear resistant high-density polyethylene
Cover Weight12.5 oz.
Rafter MaterialWelded Steel Trusses
Pipe Gauge12 ga.
Pipe Diameter2 38” top and bottom chords
Rafter Spacing10′ standard, 8′ and 14′ available
Cover Material Warranty15 year
IncludedAll hardware and lag bolts for post attachment
Not IncludedPosts or walls, rub rail, baseboards or concrete anchors, assembly
Downloadable SpecsClick Here to Download PDF

Interested in this building?

Call Us!

888-497-1088

Made in the USA

Get a Quote on This Building

*  Starred fields are required. Please use the message box to let us know about special needs like roof vents, feed awnings, doors, etc.

We love our Rushmore engineered fabric tension buildings and we’d be happy to answer any questions you may have about them. Call us 1-888-497-1088.
