50′ Wide Low Profile Truss Building

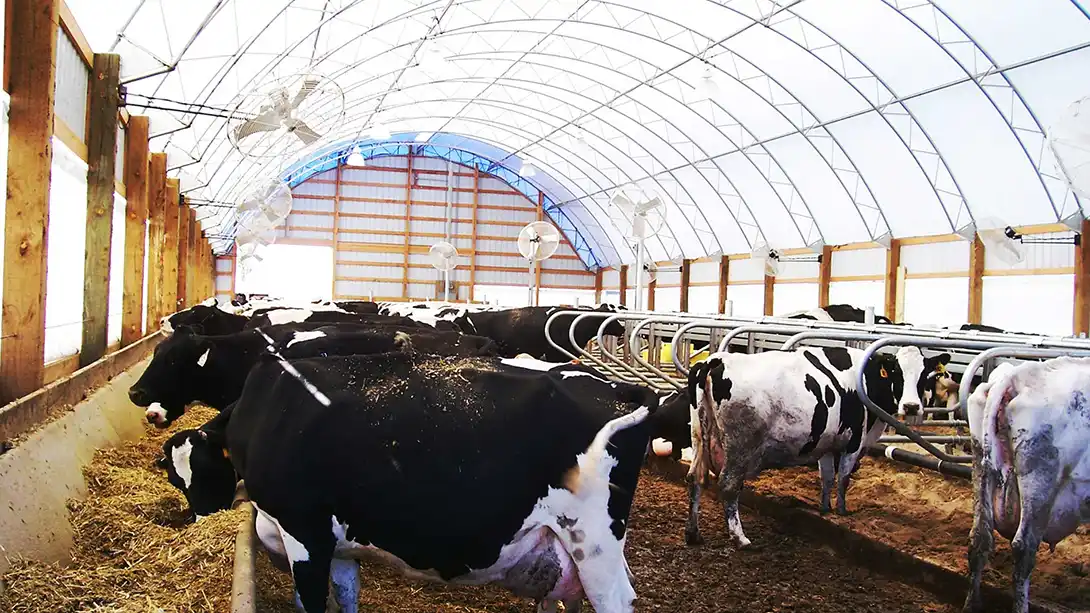

Our 50′ Wide low-profile truss fabric shelter is the perfect building for livestock shelters although it’s great for other uses too! This is a welded truss, heavy duty hoop barn. Like all of our truss buildings, it can meet or exceed IBC Engineering code requirements for a 90 mile-per-hour wind load and a 40 pound per square foot snow load.
We love the low-profile building for livestock as it still has plenty of room to promote quality air circulation but it is easier to build than standard building height and more economical too!
The Low-Profile is clear span building, meaning there are no interior posts or walls to get in your way no matter what you want to use the building for. With it’s many options, you can design your building for exactly the livestock use you have in mind.
We would love to give you prices for this building on our website but there are just too many options available for us to list. Even our color choices are complicated. Not only can you choose your hoop building main color but you can also have accent stripes in many different styles free of charge.
Interested in this building?
888-497-1088
Specifications
- Available almost any length you want
- High wind area tension kit
- Ratchet and mounting plate upgrades
- Roll-up doors
- Ridge and window vents, and
- End walls with and without supports.
| Width | 49′ Interior width from wall to wall |
| Peak Height | 13’6″ plus height of wall |
| Tensioning System | Pipe with 2″ ratchets at each rafter and end |
| Cover Material | Tear resistant high-density polyethylene |
| Cover Weight | 12.5 oz. |
| Rafter Material | Welded Steel Trusses |
| Pipe Gauge | 12ga. |
| Pipe Diameter | 2 3⁄8” top and bottom chords |
| Rafter Spacing | 10′ standard, 8′ and 14′ available |
| Cover Material Warranty | 15 year |
| Included | All hardware and lag bolts for post attachment |
| Not Included | Posts or walls, rub rail, baseboards or concrete anchors, assembly |
| Downloadable Specs | Click Here to Download PDF |
