44' Wide Truss Hoop Building

44" W Truss Hoop Barn
Click to Enlarge

A Great Barn for Storage!

Our Rushmore 44′ Wide Pony wall hoop shelter is a welded truss building. It can be constructed to meet or exceed IBC Engineering code requirements for a 90 mile-per-hour wind load and a 50 pound per square foot snow load.

This is a clear span building, meaning there are no interior posts or walls to get in your way no matter what you want to use the building for. That’s just one of the reasons these are great sheds for all kinds of storage purposes.  With a peak height of almost 17 feet, not counting your pony wall, you can store tall machinery or stack things really high!

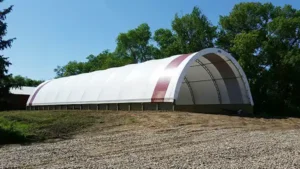

The storage garage that is pictured above has a contractor built steel end with a wide, high overhead door and a walk door. Perfect for forklifts and people! Whether it’s hay, or equipment you’ve got outside in the weather using  hoop sheds for storage is a winning decision! They are cheaper in price than other storage solutions and quicker to build.

Of course, these are still great barns for many other uses!  With or without the addition of a feed awning, they are great barns for the smaller livestock producer or a calving barn for the bigger producer. The building can even be easily divided into smaller pens and areas to make it the perfect building for whatever type of livestock you would like to house in it.

No matter what you use this hoop building for, you can expect a very long life from our zinc plated 12 gauge steel frames and 12.5 woven tape, ripstop polyethene covers.

We would love to give you prices for this hoop shed on our website but there are just too many options and sizes available for us to list. Even our color choices are complicated. Not only can you choose your hoop building main color but you can also have accent stripes in many different styles free of charge.

If you’re interested in a great hoop barn for many uses, take a minute to fill out the quote form on this page and we’ll be with you as soon as possible. If you “gotta know right now”,  give us a call!


Interested in this building?

Tap the headings below to learn more.

Some of the Available Options include:

  • Available almost any length you want
  • 5′ Feed awning on one or both sides
  • Manual and electric side curtains
  • Roll-up fabric doors and door headers up to 16′
  • Ridge and window vents, and
  • End walls with and without supports.
  • Colors, stripes, colors and more colors!

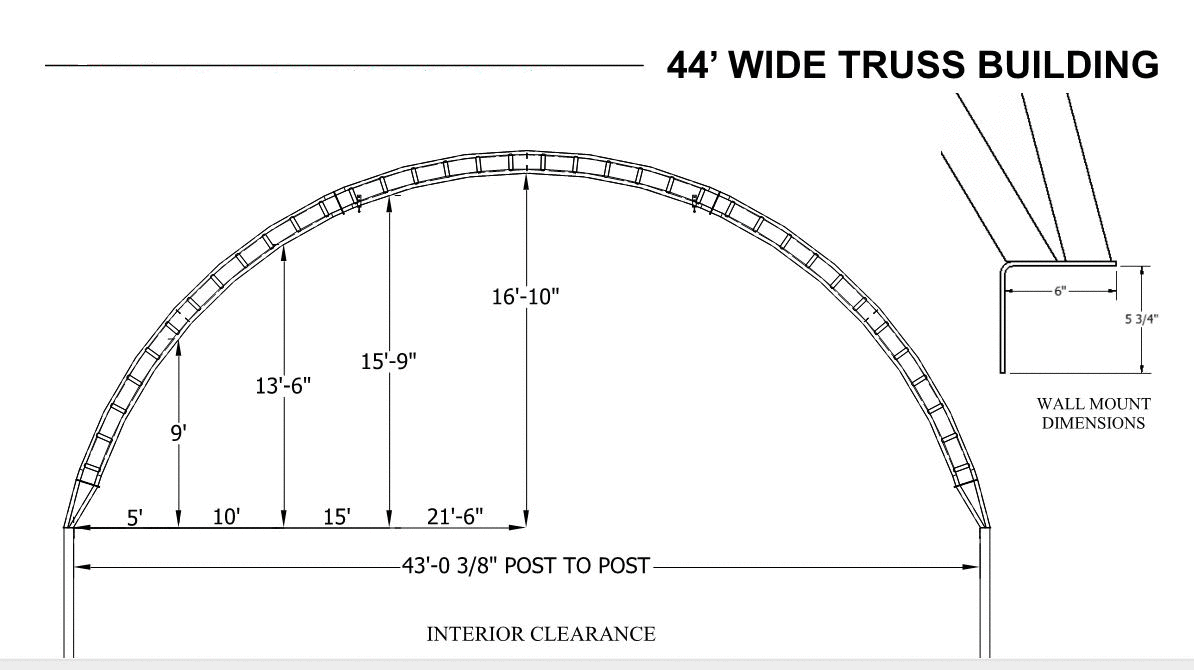

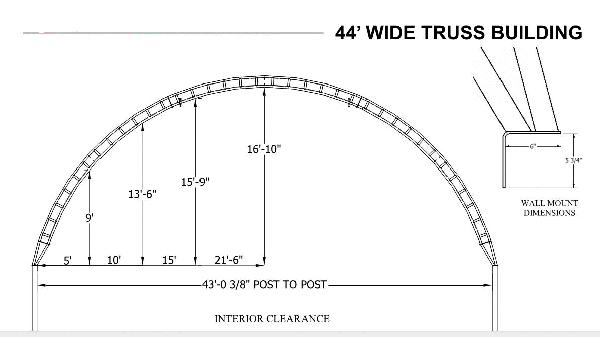

Width43′ 38” Interior width from wall to wall
Peak Height16’10” plus height of wall
Tensioning SystemPipe with ratchets at each rafter and end
Cover MaterialTear resistant high-density polyethylene
Cover Weight12.5 oz.
Rafter MaterialWelded Steel Trusses
Pipe Gauge12ga.
Pipe Diameter2 – 2 38” top and bottom chords
Rafter Spacing10′ standard, 8′ and 14′ available
Cover Material Warranty15 year
IncludedAll hardware and lag bolts for post attachment
Not IncludedPosts or walls, rub rail, baseboards or concrete anchors, assembly
Downloadable SpecsClick Here to Download PDF
