40′ Wide Truss Fabric Building
![40 fabric hoop barn kit](https://hoopbarn.com/wp-content/uploads/2024/08/40-wide-fabric-hoop-barn.webp)
Our 40′ Wide Truss fabric building is proudly manufactured in the United States of America, right here in South Dakota actually. This is a Rushmore building, the heaviest line of fabric buildings we’ve ever carried.
These 40 wide fabric hoop barns can be built quickly to coverall of your equipment or livestock efficiently and for a good price.
If you open the drop downs in the next section, you will find much more information about this fabric shed. We proudly list all of our building specifications so you can know if you are comparing different brand tarp sheds that you are comparing apples to apples.
Interested in this building?
888-497-1088
![Made in the United States of Americe](https://hoopbarn.com/wp-content/uploads/2023/05/Made-in-the-USA.webp)
Specifications
- Available almost any length you want
- 5′ Feed awning on one or both sides
- Manual and electric side curtains
- Roll-up fabric doors and door headers up to 16′
- Ridge and window vents, and
- End walls with and without supports.
- Colors, stripes, colors and more colors!
The term “truss” means that the rafters are a double round heavy gauge pipe with a welded steel webbing between them. Custom rafter spacing is available for this 40′ wide truss barn depending upon the application. The minimum length we are offering is 40′ but the maximum length is almost any length you could need.
This model is also a “pony wall” building. It is designed to be erected on posts, block, or a concrete wall. A 4′ high pony wall is the industry standard. If you put your building on a 4′ wall, the overall peak height would then be about 18’3″. Wall height is up to you, but we will need know your plan so that we can supply you with the correct mounting brackets. Your pony wall or foundation must be at least 24″ tall to properly tension the fabric cover.
Of course, this couldn’t be a fabric tension building without the fabric. Our 40′ is covered with 12.5 oz. 24 mil polyethylene tarp that has an inner layer of woven tapes. The covers are rip stop and transmit light well so you can see without the expense of electric lights.
These utility hoop buildings are easy to erect. They are quickly bolted together and erected with a few days work. A complete instruction manual and all hardware are included in your hoop building kit.
There are many custom options available beginning with tarp color. Not only can you choose your hoop buildings main color, but you can also have end accent stripes in many different styles. The possibilities are nearly limitless!

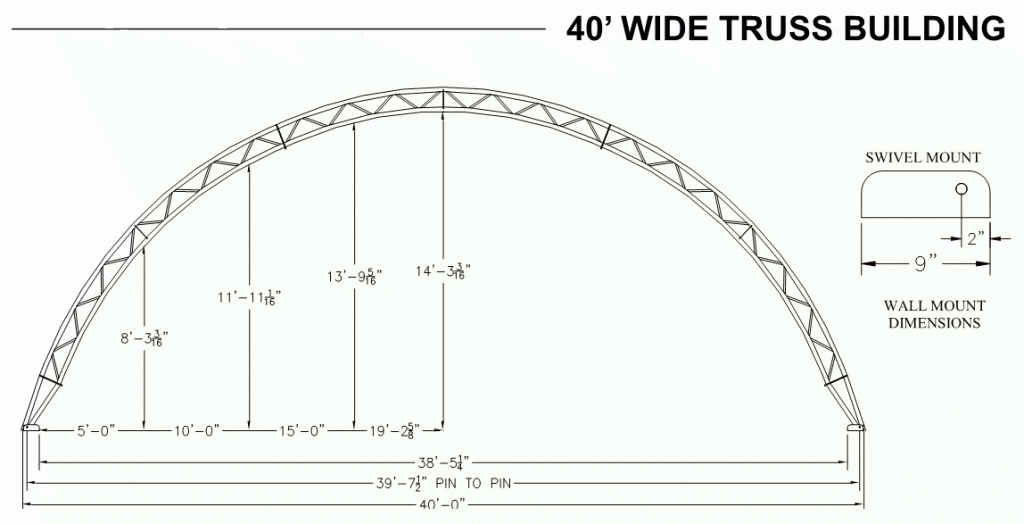

Width | 38′ 5 ¼” Interior width from wall to wall |
Peak Height | 14′ 3 3⁄16” plus height of wall |
Tensioning System | Pipe with ratchets at each rafter and end |
Cover Material | Tear resistant high-density polyethylene |
Cover Weight | 12.5 oz. |
Rafter Material | USA-made Gatorshield® structural steel |
Pipe Gauge | 12 |
Truss Detail | 2 – 2 3⁄8” top and bottom chords |
Rafter Spacing | 8′, 10′ or 14′ |
Cover Material Warranty | 15 year |
Included | All hardware and lag bolts for post attachment |
Not Included | Posts or walls, rub rail, baseboards or concrete anchors, assembly |
Downloadable Specs | Click Here to Download PDF |
